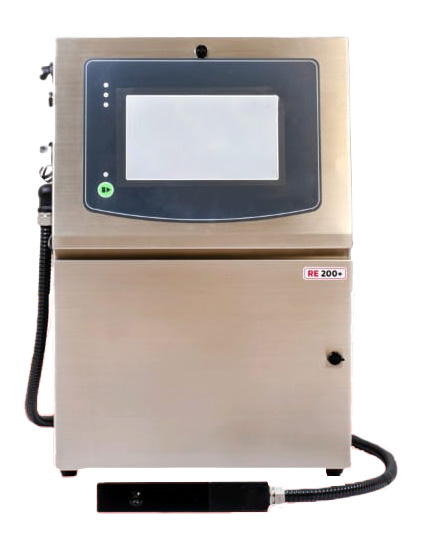

RE 200 PLUS
Easy operation with 10.1" large screen
One-key start and stop precise control
Easy to maintain independent module structure
Automatic cleaning function prevents ink clogging in nozzle
Stable and reliable classic ink circuit
Technical Specifications
- Print head conduit: 3 MTR
- Nozzle specification: 60 µm
- Printing lines: 1 to 5 lines
- Printing speed: 350 m/min (Depend on character)
- Printing height: 1.5 mm to 15 mm
- Throw distance: 1 mm to 18 mm
- Counters: More than 20 independent counters
- Operating system: Embedded Linux security operating system
- Display screen: 10.1-inch colour display (Industrial Touchscreen)
- Communication interface: Network port, USB, RS232
- Protection level: IP55
- Machine material: Stainless steel (304)
- Machine dimension: 447 mm × 242 mm × 650 mm (L × W × H)
- Net weight: 30 kg
